The 008 Series is a range of top end Low Power Radio Transmitters and Receivers on 868MHz

Product Code: HPIR008
868 MHz Transmitter Motion Sensor
Wireless Transmitter Motion Sensor on 868MHz

Features:

Pre-coded (over 10,000 differs)

9M Detection Pattern

Selectable Pulse Count

Selectable LED On/Off

Selectable Power-Save Mode

Low Battery indication

Tamper Switch

Powered by 2 x AA batteries

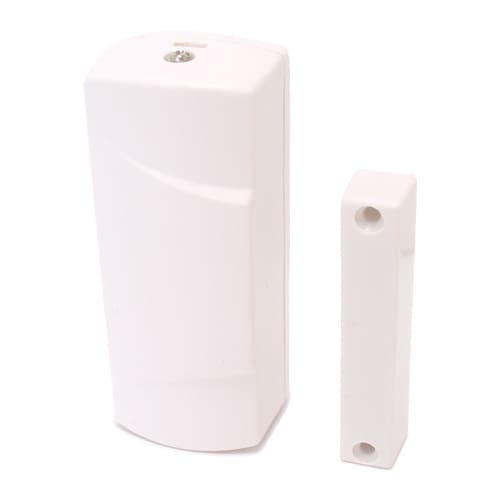

Product Code: HUT008

universal 868 MHz low power transmitter

Universal 868 MHz Wireless Transmitter

Features:

Input Terminal Block for NO or NC Triggers. Attach to pressure mats/door contacts etc or any Normally Open or Normally Closed Output

Built-in Reed-Switch and supplied with separate magnetic contact

Selectable Pulse Count for the Input

Low Battery Indication

Tamper Switch

Selectabel Power Save Mode

Powered by Lithium 3V Battery

Product Code: HTX008/4

4 channel RC 868 MHz Transmitter

4 Channel Remote Control (RC Transmitter) on 868 MHz

Features:

70 x 40 x 12mm

4 buttons

Low Battery Indication



Product Code: HTX008/2

2 channel RC 868 MHz low power transmitter

2 Channel Remote Control (RC Transmitter) on 868 MHz

Features:

70 x 40 x 12mm

2 buttons

Low Battery Indication

Product Code: HRX008

multi channel wireless 868 MHz low power receiver

Multi-Channel Self-Learn Wireless Receiver on 868MHz

Features:

Super-Hetrodyne

8 Channels, both with 1A rated Relay Outputs

Individual Jumpers select an Output as NO or NC

Further Jumpers select whether an Output is momentary, timed or toggle latching

Timed Output selectable between 3 secs and 30 mins

Learn up to 24 separate Transmitters to the Receiver

Radio Transmitter Low Battery Indication

Radio Transmitter Tamper Indication

12V DV Operation

datasheet of 008 Series radio transmitters and receivers 008 868 MHz Series Datasheet

motion sensor manual HPIR008 Manual

univeral wireless transmitter manual HUT008 Manual

multi channel wireless receiver manual HRX008 Manual

PT 433.92 MHz Series of Radio Transmitters and Receivers
